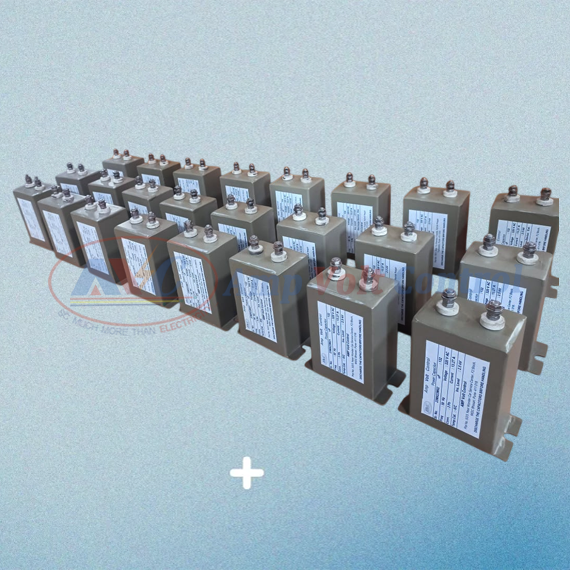

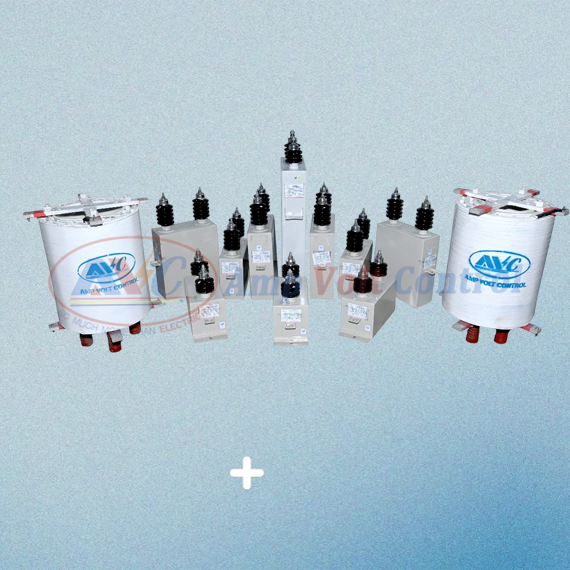

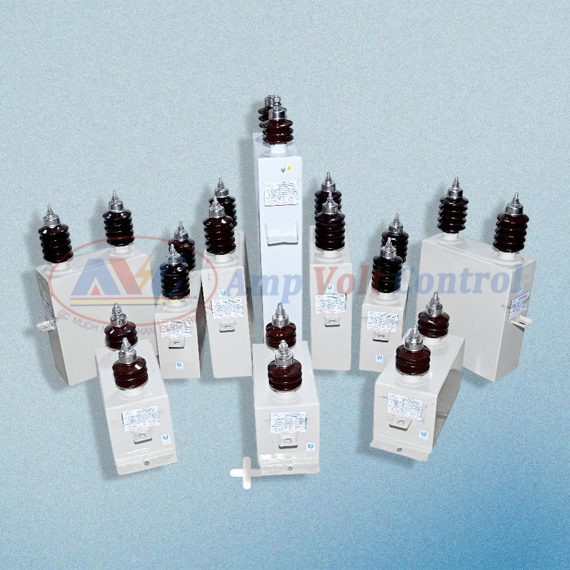

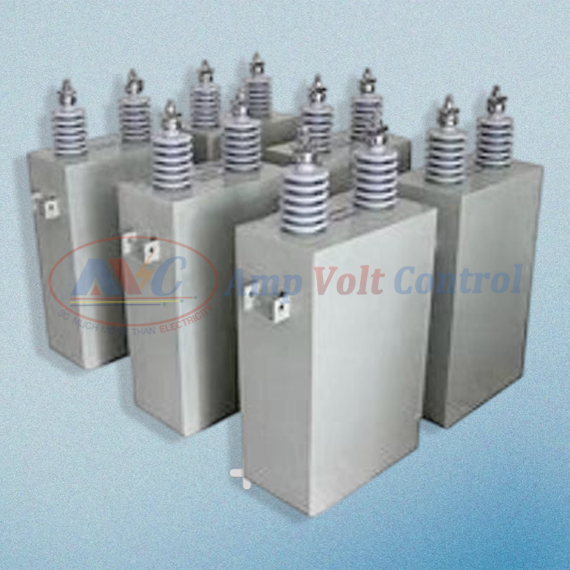

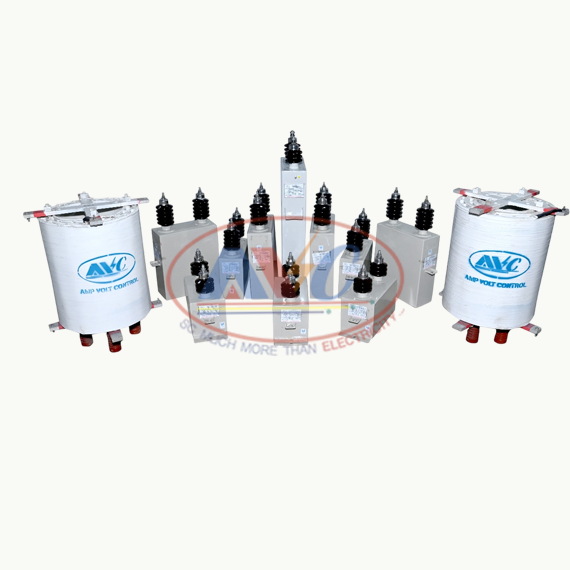

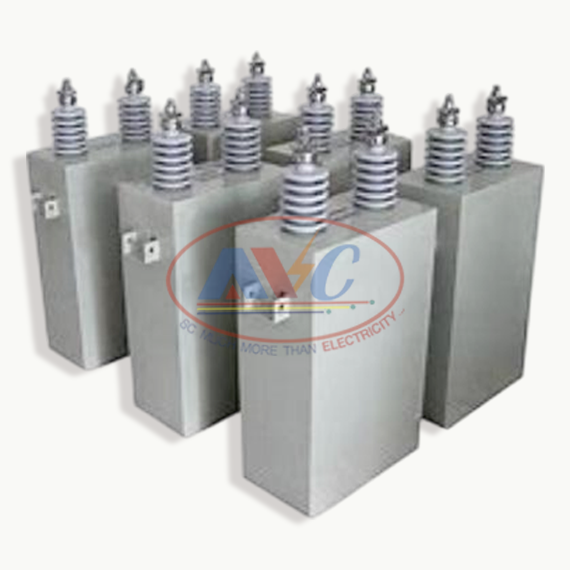

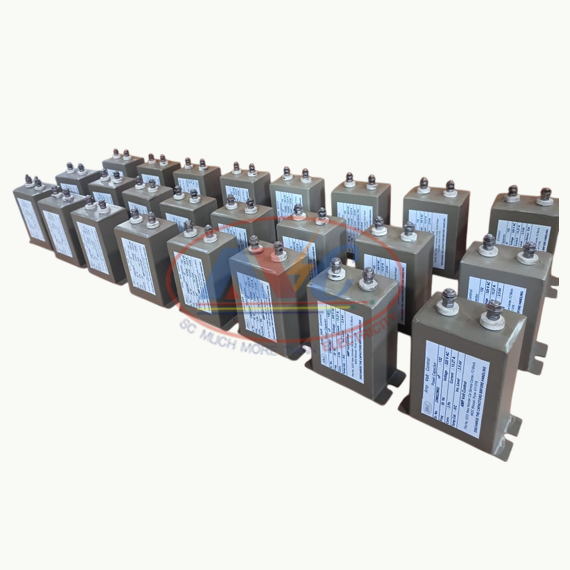

We are Manufacturer, Supplier, Exporter of HV (High Voltage), MV (Medium Voltage) APP Capacitors, HT Capacitors, LV APP Capacitor Unit from Pune, Maharashtra, India.
These capacitors are mainly used for power factor improvement of electrical system where electrical load is of lagging power factor, minimizing transmission, distributions line losses and harmonic filters. Capacitors are manufactures in single and three phase units. For larger capacities, capacitor units are arranged in parallel and series combinations to form capacitor bank.
HT capacitors are designed with latest technology and manufactured in clean environment as per international cleanliness standards The specialty of our HT capacitors is low loss, longer life, environment friendly, leak-free termination and highly reliable quality in addition to compliance to international standards. Capacitor dielectric is bi-axially oriented hazy film (BOPP), electrode is pure aluminium foil having purity 99% and above and oil is NPCB (All film or APP dielectric)
The maximum recommended working voltage of capacitor is 110% of rated voltage, Capacitors include a safety factor that permits them to tolerate without damage momentary over voltages caused due to switching/load fluctuation. Capacitor-rated frequency is 50/60 Hz, kVAr output varies directly as the ratio applied frequency to rated frequency. Capacitors designed to operate at other frequencies are also available. The Capacitor to comply with IS 13925-1/IEC 60871 standards with using latest technology, materials and state of art of plant and machinery.
High Voltage Capacitor, Mpp Shunt Capacitor, High Voltage Shunt Capacitors, Water Cooled Capacitor, Power CapacitorsOur Capacitors are Type Tested at NABL laboratories
- Maximum Voltage 24 kV
- Maximum Output 1000 kVAr in both 1 & 3 Phase.
- All Polypropylene (APP) film dielectric.
- Compact size & convenient mounting.
- Protection Internal Element fuse/External fuse.
- Low Losses
- Indoor or Outdoor Application
- Superior Electrical Performance Improved Tank Rupture Characteristics
LV(Low Voltage) APP Capacitor Units, MV(Medium Voltage) Capacitor Units, HV (High Voltage) Capacitor Units, Low Voltage / Mediaum Voltage APP Capacitor Units, HV (High Voltage) APP Capacitor Units, LV (Low Voltage) All Polyproplyne Capacitor Units, LV (Low Voltage) MPP Capacitor Units, LV (Low Voltage) Metalized Polyproplyne Capacitor Unit, MV (Medium Voltage) All Polyproplyne Capacitor Unit, HV(High Voltage) All Polyproplyne Capacitor Unit
