Power Capacitors / PF Improvement Capacitors

A Power Capacitor is a passive device that is used widely in industries and commercial electric appliances. In this lead, We Amp Volt Control presents a wide range of power capacitors in Reactive Power Solutions. With a range of resin-filled and gas-filled capacitors, Oil filled APP type Capacitors these devices feature high inrush current withstand capability.

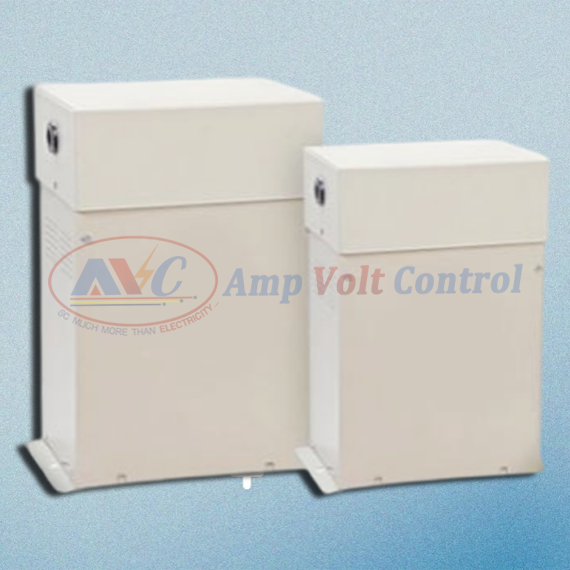

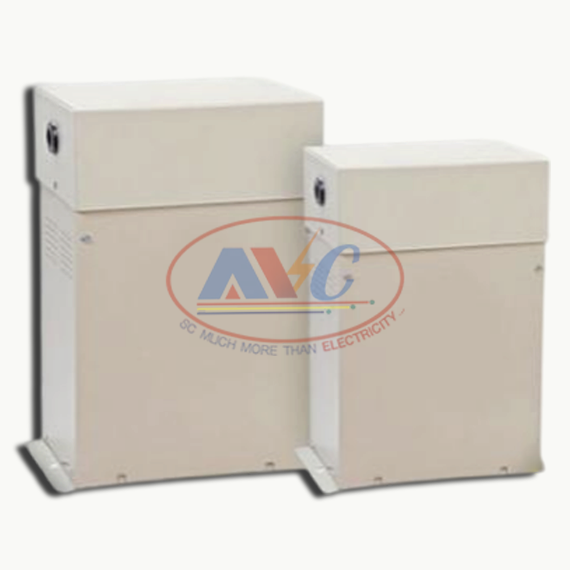

Low Voltage Capacitor (Cylindrical & Box type) MPP/APP

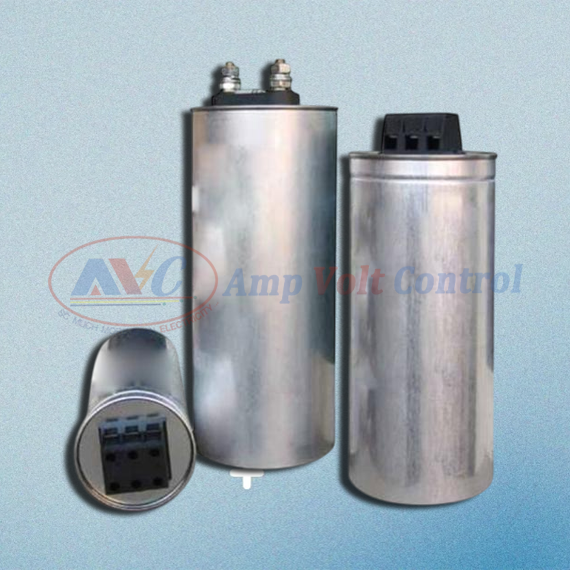

The cylindrical power capacitors are engineered with self-healing property to enhance the performance and safeguard the instruments from unwanted damages.

The Multilayer Metallized Polypropylene (MPP) (as per IEC:60831-1 & 2, IS:13340 Part 1 & 2). These Capacitors are coupled with a great peak inrush withstand capacity of more than 350 times, leading to improved power factor of the source current. These power capacitors are equipped with over-current withstand capacity of up to 3 times of IR.

Low Voltage Film + Foil APP Heavy Duty Capacitors for power factor improvement and mitigation of harmonic through shunt passive filters in distribution systems. The standard rating of capacitor manufactured are any of value from 5 to 50 kVAr for both 440 & 525 Volts with ISI & CE marking. Still higher rating can supply on request. The Applicable standards are IS 13858 (Part 1) /IEC 60931-1. Safety measures for capacitor unit are through internal element fuse design, Nonhazardous NPCB Capacitor, externally discharge resistor.
