We are Manufacturer, Supplier, Exporter of Series Reactors LV (Low Voltage), from Pune, Maharashtra, India.
Passive harmonic filters are the most commonly used devices for reducing the harmonic distortion in a network. These filters are built up from passive RLC components, i.e., resistors, inductors and capacitors. The reactors in these filters serve to provide a resonance path together with the capacitors existing in the harmonic filter. By appropriately tuning the resonance frequency of a harmonic filter, the unwanted harmonic currents injected by the nonlinear loads can be prevented from going into the electrical grid

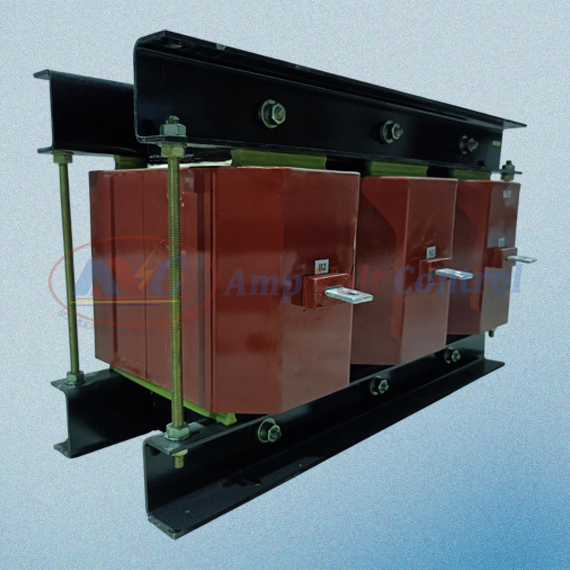

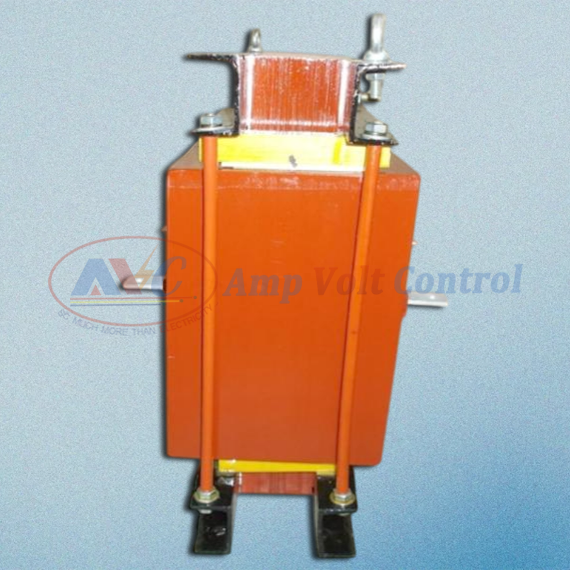

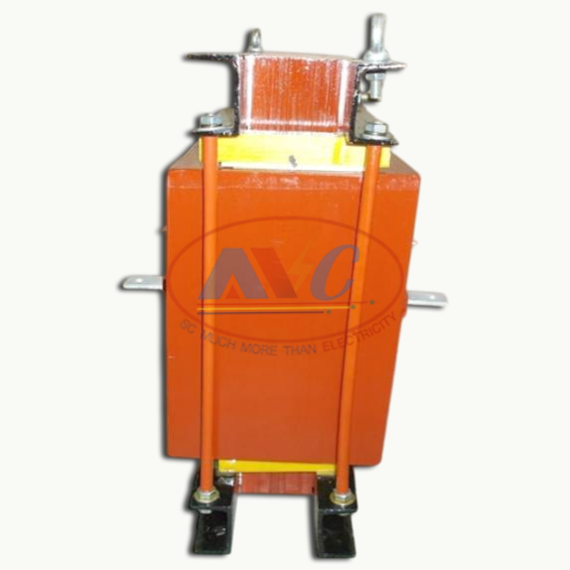

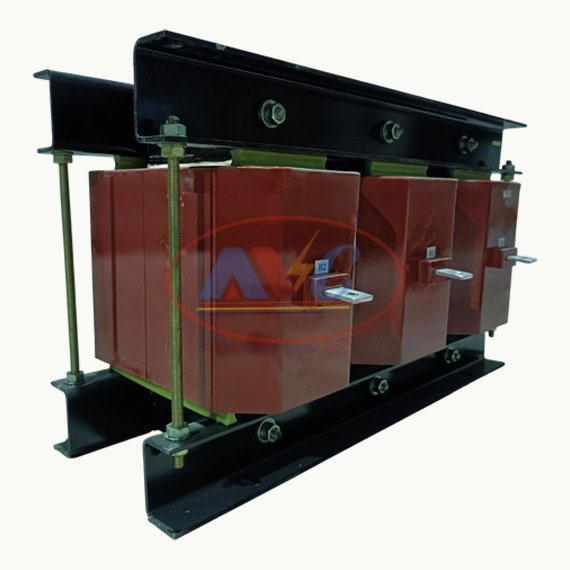

AVC offers a superior & proven range of state designed Iron-Core Filter Reactors. The scope of production covers the entire spectrum of single- and three phase Iron-Core reactors for capacitor detuning and for tuned harmonic filters.
Low Voltage Application
At low voltage level, usually iron core reactors are used as harmonic filter inductors. They may be also used at medium voltage level in some applications. Iron core reactors are used along with Capacitor in Detuned harmonic filter application. Detuned reactors are available in size such as 5%, 6%, 7% & 14% of Capacitor bank ratings and choice depends on network conditions at the point of common coupling.
Features
- Linearity up to 200%.
- Compact in size & ease of mounting.
- Low losses & noise level.
- Tested as per IS 2026 & IEC 60076-6 safety.
- Thermal Switch provided to protect from getting overheated.
- Cooling: Air Natural
- Aluminum & Copper winding.
- Insulation Class: F Class or Custom
