We are Manufacturer, Supplier, Exporter of Capacitor Capacitor Banks / Panels - MV (Medium Voltage), HV (High Voltage), from Pune, Maharashtra, India.
MV & HV Capacitor banks are installed at substation and big industries connected in parallel to the system in order to provide reactive power and main power factor. They are provided with tuned or detuned reactors to mitigate the harmonics present in system. 11 kV and 33 kV Capacitor banks are either star (Single Star or Double Star) with unbalance protection of Voltage or Current using RVT or NCT or delta connected. These Capacitor banks are used both Fixed type or Automatic type. Amp Volt has state of art of manufacturing facility with good experience in both Indoor and Outdoor Capacitor bank and Panel. We build panel as per latest IS/IEC.

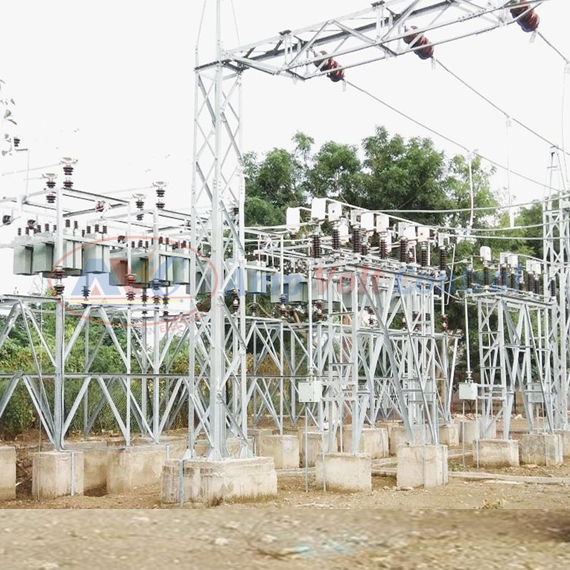

Open Stack Structure Mounted Capacitor Bank
- Mounted on Hot dip Galvanized Structure
- Both Automatic & Fixed type system are available.
- Energy saving.
- Capacity optimization.
- Enabling fast-tracked on-site installation and commissioning with minimal work and labor.
- Nominal Voltage rating from 3.3 kV to 33 kV and in rating up to 20 MVAr.
- Step sizes suits users power requirement for Automatic type Banks.
- Inrush Current Suppression and Harmonic blocking.

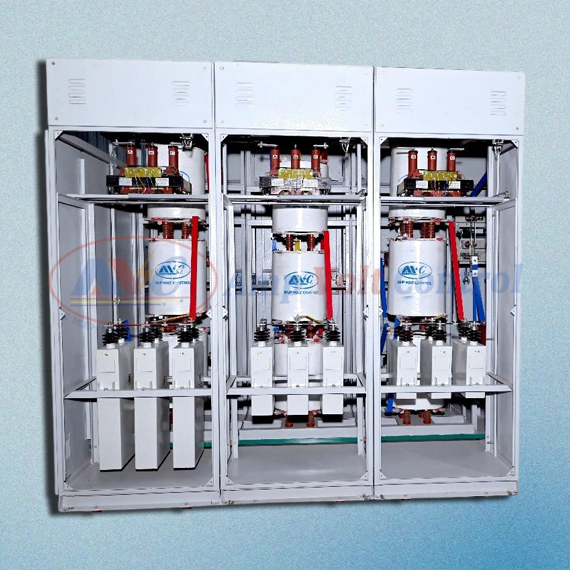

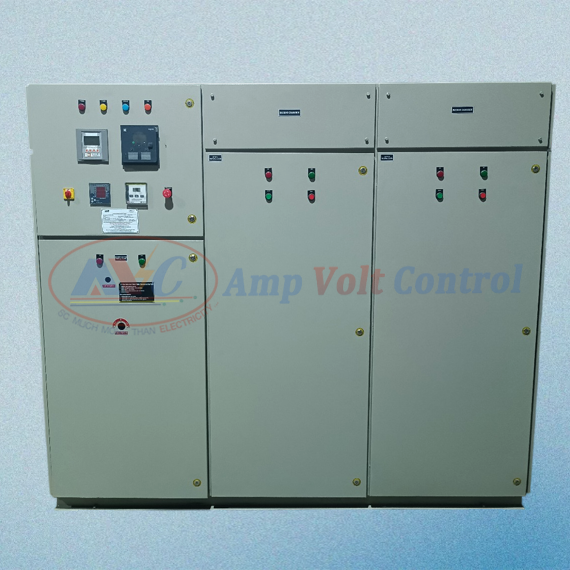

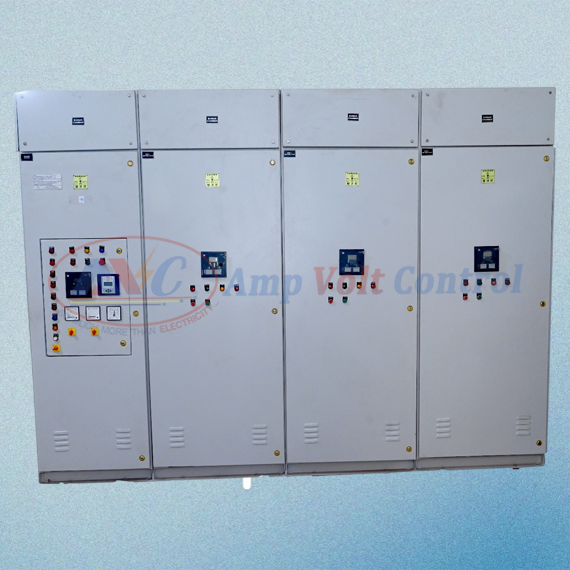

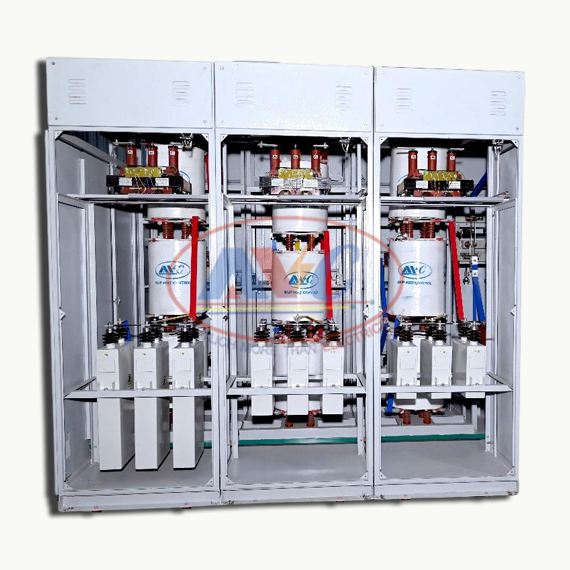

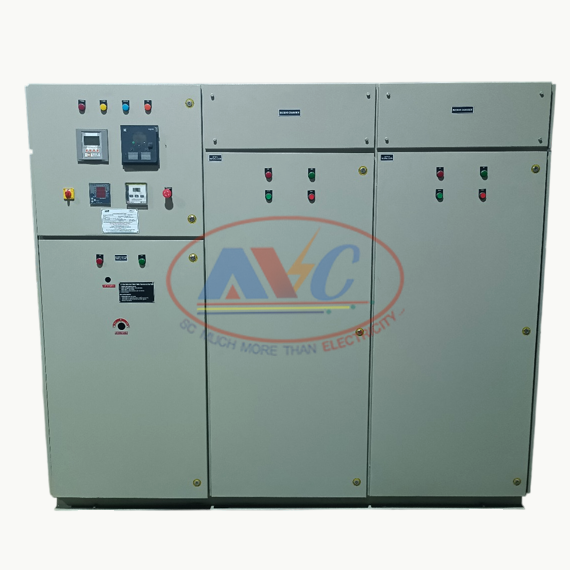

Panel Mounted Capacitor Bank and APFC Panel
- AD Mounting system. (CRCA Enclosure designed for both Indoor and Outdoor Application).
- Applicable in both Automatic & Fixed type system.
- Energy and Space Saving, Equipped with various Protection relays
- Capacity optimization, Temperature due to fan failure, O/C, O/V, E/f, Unbalance protection.
- Enabling fast-tracked on-site installation and commissioning with minimal work and labor.
- Nominal Voltage rating from 1 kV to 11 kV
- Rated Power up to 2500 kVAr per step
- Step sizes suits users power requirement for Automatic type Banks.
- Inrush Current Suppression and Harmonic blocking.
