We are Manufacturer, Supplier, Exporter of HV (High Voltage) System Air Core / Iron Core Reactors, from Pune, Maharashtra, India.

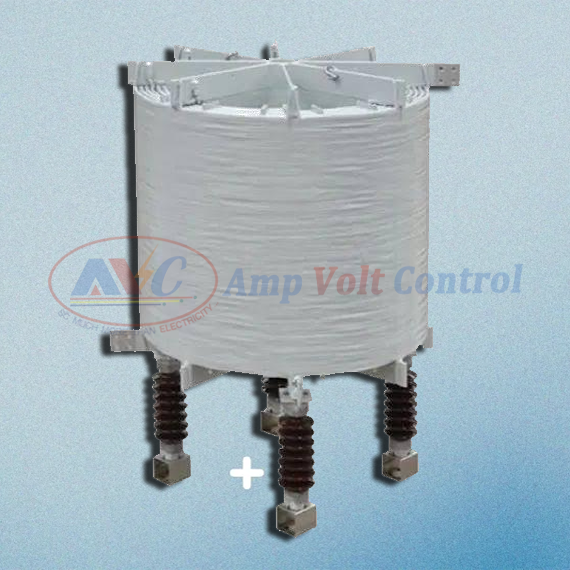

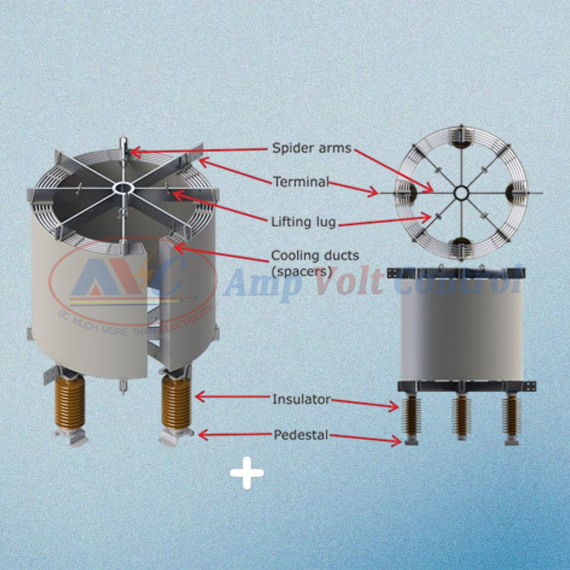

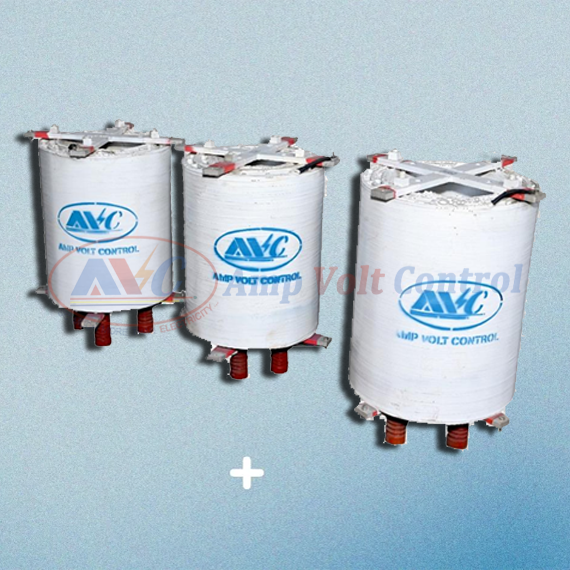

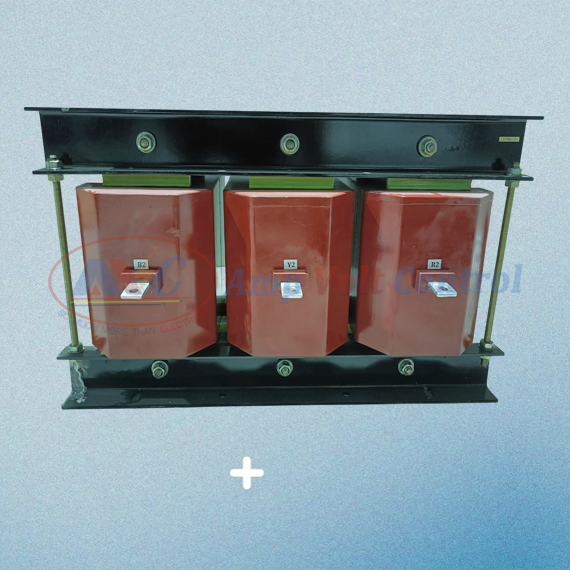

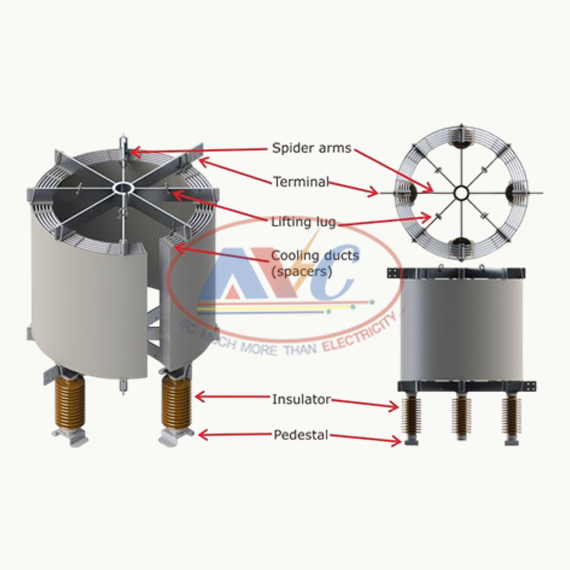

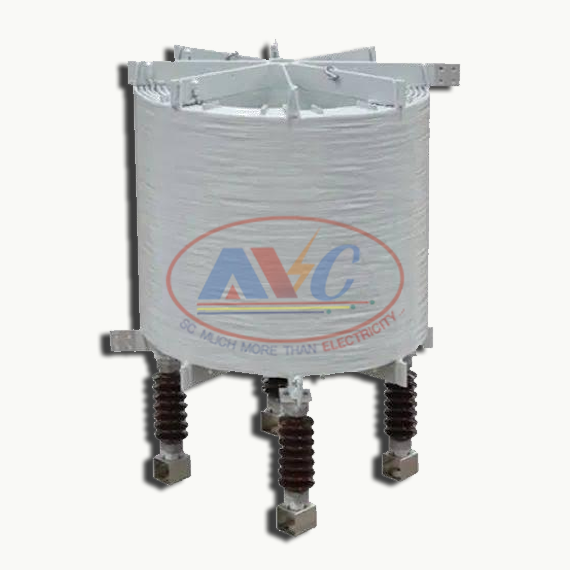

At medium & High Voltage level, usually air core dry type reactors are used as harmonic filter reactors along with Capacitor in Detuned harmonic filter. Having no magnetic core, air core reactors are free from saturation. They may be installed outdoor and indoor as long as magnetic flux path is considered during installation in order to stay away from ferromagnetic material while in operation. We also manufacture Supplier Iron core / air core dry type reactors and MV/HV.
Our Reactors are Type Tested at NABL laboratories
- Voltage up to 36 kV
- Detuned reactors are of 0.2%, 6% or 13%.
- Fundamental Frequency: 50-60 Hz
- Type: Dry, Air Core
- Harmonic Order Frequency: Up to 2.5 kHz (50th Harmonic for 50Hz system
- Altitude: Up to 1000 m.
- Installation: Indoor/Outdoor
- Insulation Class: F Class or Custom
- Winding Material: Aluminum or Copper
- Temp. Range: -40°C to 55°C
- Cooling: Air Natural
